Vehicle mounted recycled asphalt mixer Traction wheel mobile type Factory sales
0.5-3 cubic asphalt mixer
Our mobile traction vehicle-mounted Recycled asphalt mixer is a versatile, integrated RAP processing equipment, combining the flexibility of vehicle-mounted design with the efficiency of a Recycled asphalt drum mix machine. As one of the professional Recycled asphalt mixer factories, we design this equipment to be fully movable, traction-ready and vehicle-mounted, suitable for on-site RAP recycling and hot mix asphalt production. It features flexible relocation, compact structure, intelligent control and full customization, ideal for road maintenance, emergency repair and small-to-medium RAP reuse projects, balancing mobility, efficiency and cost-effectiveness.
Quantity:
Recommend Products
1 cubic car mounted asphalt mixer, traction wheel mobile double tank asphalt mixer, specializing in the production of road machinery equipment1 cubic double tank recycled asphalt mixer
5 cubic meter vehicle mounted asphalt mixer, traction wheel mobile portable hot mix asphalt trailer, manufacturer of road engineering machinery equipment5 cubic asphalt mixer
Function Description Of Mobile Asphalt Mixer
Triple Mobility: Mobile, Traction-Ready & Vehicle-Mounted Design
This Recycled asphalt mixer adopts a triple-mobility design—vehicle-mounted integration, traction compatibility and free movement. It can be mounted on a truck chassis for long-distance transportation, connected to a tractor for on-site relocation, or moved flexibly in small areas via its own wheels. As experienced Recycled asphalt mixer factories, we can customize chassis type, traction interface and wheel configuration to adapt to different transportation and on-site needs, ensuring maximum mobility.

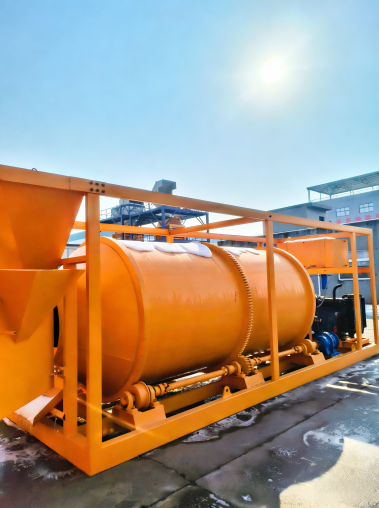

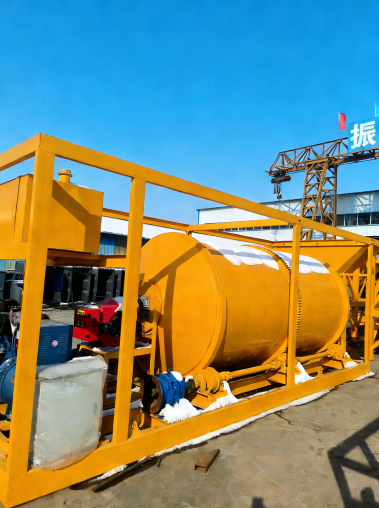

Efficient Recycled Asphalt Drum Mix Machine Core
The core component is a high-performance Recycled asphalt drum mix machine, which completes RAP heating, mixing and regeneration in one continuous process. The rotary drum is equipped with special wear-resistant mixing blades, ensuring uniform heating and mixing, with RAP addition rate up to 80% and mixing uniformity of 99.5%. We can customize drum size, rotation speed and lining material to optimize the performance of the Recycled asphalt mixer.
Energy-Saving & Eco-Friendly Performance

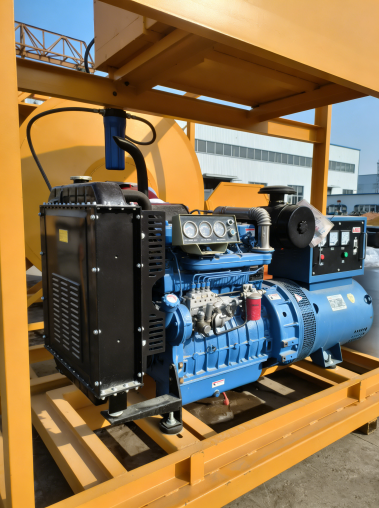

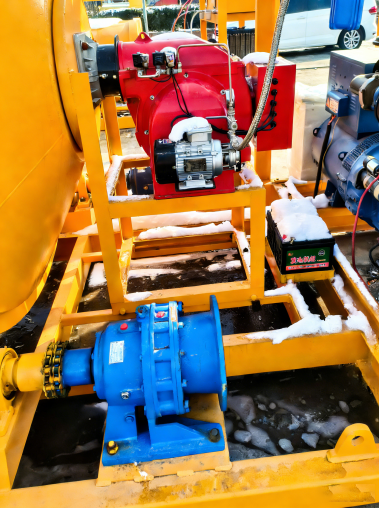

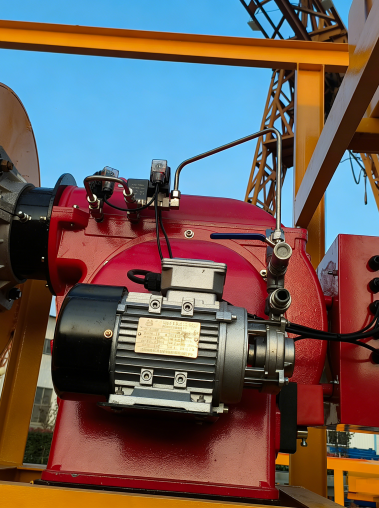

Designed by professional Recycled asphalt mixer factories, this equipment is equipped with a high-efficiency burner (compatible with diesel, natural gas and LPG), and the drum is wrapped in a 50mm thick insulation layer to reduce heat loss. Fuel consumption is as low as 5.2–6.8kg/t.We can equip you with diesel engines and generator sets upon request.
Compact & Quick Deployment
The vehicle-mounted and traction design eliminates the need for complex foundation and disassembly. It can be deployed and put into use within 20–30 hours after arriving at the site, significantly improving construction efficiency. The compact structure reduces footprint, making it suitable for narrow construction sites. As reliable Recycled asphalt mixer factories, we can customize the overall size and modular design to adapt to different on-site space constraints.
Fully Customizable Configuration
We provide comprehensive customization services for this mobile traction vehicle-mounted Recycled asphalt mixer: mixing capacity (0.5–5 cubic), chassis type (light/heavy-duty), fuel type, RAP addition rate, Recycled asphalt drum mix machine parameters, control system functions, dust removal equipment and safety accessories. All customizations are tailored to your project scale, mobility needs and budget.
Product Parameters Of Recycled Asphalt Mixer
| Model | 0.5 cubic meters | 1 cubic meters | 1.5 cubic meters | 2 cubic meters | 3 cubic meters |
| Engine | shanghaiyufa | shanghaiyufa | shanghaiyufa | shanghaiyufa | shanghaiyufa |
| Production power | 10-15 minutes per session | 10-15 minutes per session | 10-15 minutes per session | 10-15 minutes per session | 10-15 minutes per session |
| Frame size | 5500*2000*2650mm | 4200*2300*2000mm | 6600*2300x2950mm | 6900*2300x3250mm | 6600*3300x2950mm |
| Tank size | 1.75 Parties | 3.25 Parties | 4.25 Parties | 5 Parties | 4.25 cubic meters/2 pieces |
| Power/Power | 12 kw | 30 kw | 30 kw | 30 kw | 50 kw |
| Hot melt kettle capacity | 400 L | 500 L | 500 L | 500 L | 500 L |
| Mixing temperature | Adjustable from 160-210 ℃ | Adjustable from 160-210 ℃ | Adjustable from 160-210 ℃ | Adjustable from 160-210 ℃ | Adjustable from 160-210 ℃ |
| Startup method | Electric Control/Electric Start | Electric Control/Electric Start | Electric Control/Electric Start | Electric Control/Electric Start | Electric Control/Electric Start |
| Mixing motor | 5.5 kw | 5.5 kw | 5.5 kw | 5.5 kw | 5.5 kw |
| Production power | 4-6 T/h | 8-12 T/h | 12-15 T/h | 15-18 T/h | 18-20 T/h |

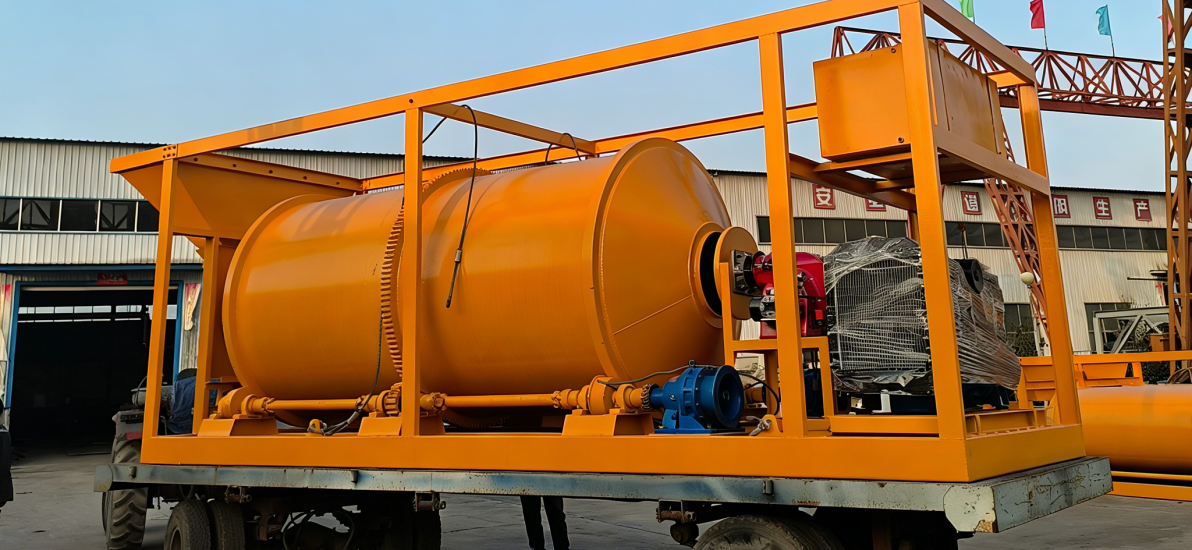

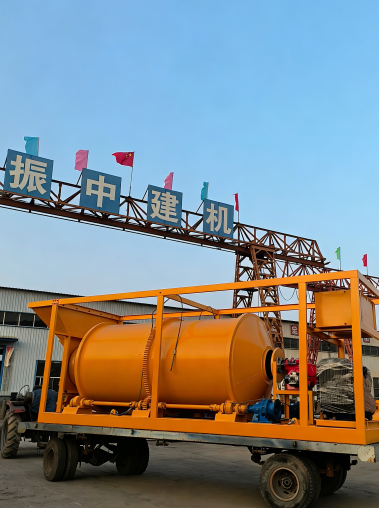

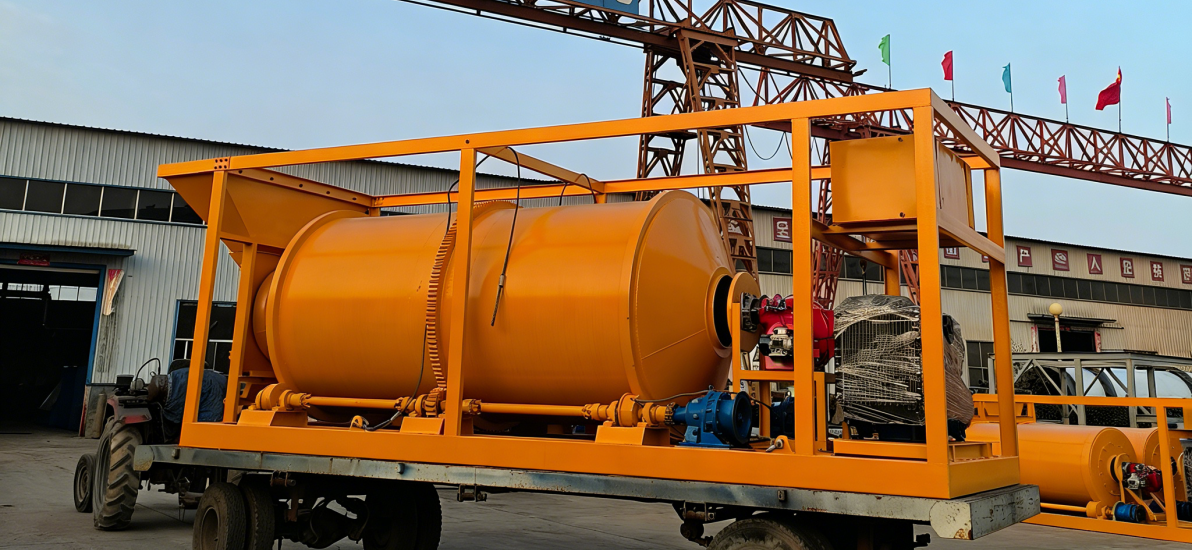

Product Image Of Recycled Asphalt Mixing Equipment
Application Scenarios Of Recycled Asphalt Mixing Machinery
- 1. Road Emergency Maintenance: The mobile traction vehicle-mounted Recycled asphalt mixer can be quickly deployed to repair potholes, cracks and damaged road sections, saving time and raw material costs.
- 2. Rural & Remote Road Construction: Its triple-mobility design adapts to remote and uneven rural roads, processing RAP into qualified asphalt mixture for rural highway construction and upgrading.
- 3. Municipal Maintenance: Compact size and low noise make it suitable for urban road renovation, community road repair and square paving, without affecting traffic and surrounding environments.
- 4. Small-Scale RAP Reuse: As a professional Recycled asphalt drum mix machine, it is ideal for small-to-medium RAP reuse projects, converting milled RAP into high-quality asphalt mixture for resource recycling.
- 5. Temporary Construction Sites: Suitable for temporary projects such as airport aprons, port access roads and parking lots, it can be quickly relocated and deployed to meet on-site asphalt production needs.
FAQ Of Recycled Asphalt Mixing Machine
1. Q: What are the key parameters of the mobile traction vehicle-mounted Recycled asphalt mixer?
A: Mixing capacity 0.5–5 cubic, RAP addition rate up to 80%, fuel consumption ≤5.2–6.8kg/t, mixing temperature 160–210°C, total power 15–80KW. All parameters are customizable by our Recycled asphalt mixer factories.
2. Q: What makes this Recycled asphalt drum mix machine different from fixed or single-mobility models?
A: It has triple mobility (vehicle-mounted, traction-ready, flexible movement), no complex foundation, quick deployment, and is suitable for multi-site and emergency projects—advantages that fixed or single-mobility models do not have.
3. Q: What customization services do your Recycled asphalt mixer factories provide?
A: Customizable mixing capacity, chassis type, fuel type, RAP addition rate, drum parameters, control system, dust removal equipment and safety accessories, fully matching your specific project needs.
4. Q: Is this Recycled asphalt mixer easy to transport, deploy and maintain?
A: Yes. Vehicle-mounted for long-distance transport, traction-ready for on-site relocation, deployable in 20–30 hours. Easy-to-replace parts simplify maintenance. We provide maintenance kits and on-site guidance.
5. Q: What is the price range of this mobile traction vehicle-mounted Recycled asphalt mixer?
A: Factory direct price is $8,000–$18,000/set, depending on configuration and customization, with competitive prices as direct Recycled asphalt mixer factories.
