Introduction To Mobile Concrete Mixing Plant

Our mobile concrete batching plant mainly includes two types: mobile drum mixing type and mobile forced mixing type, designed for flexible, on-site concrete production. Unlike stationary HZS series concrete batching plant, it features strong mobility, no need for complex foundation construction, and quick installation. Widely applied in temporary construction sites, rural infrastructure, road and bridge maintenance, emergency construction and cross-region projects, it boasts compact structure, easy operation and high adaptability. Mobile drum mixing type is cost-effective for general concrete mixing, while mobile forced mixing type ensures higher mixing uniformity for high-strength concrete. Suitable for construction teams, small-medium contractors, emergency engineering units .

Composition System And Customization Of Mobile Concrete Mixing Plant

We provide comprehensive customization for mobile concrete mixing plants, including mobile drum mixing and mobile forced mixing types, including output capacity, mixing system, power configuration, control panel, and chassis design. Unlike the HZS series customization, we focus on mobility and on-site adaptability, providing a complete mobile station construction solution that covers equipment matching, on-site deployment, installation, and debugging. We provide OEM services and can customize specifications, appearance, and functionality according to your project scenario, local standards, and brand needs, achieving a one-stop mobile concrete production solution.

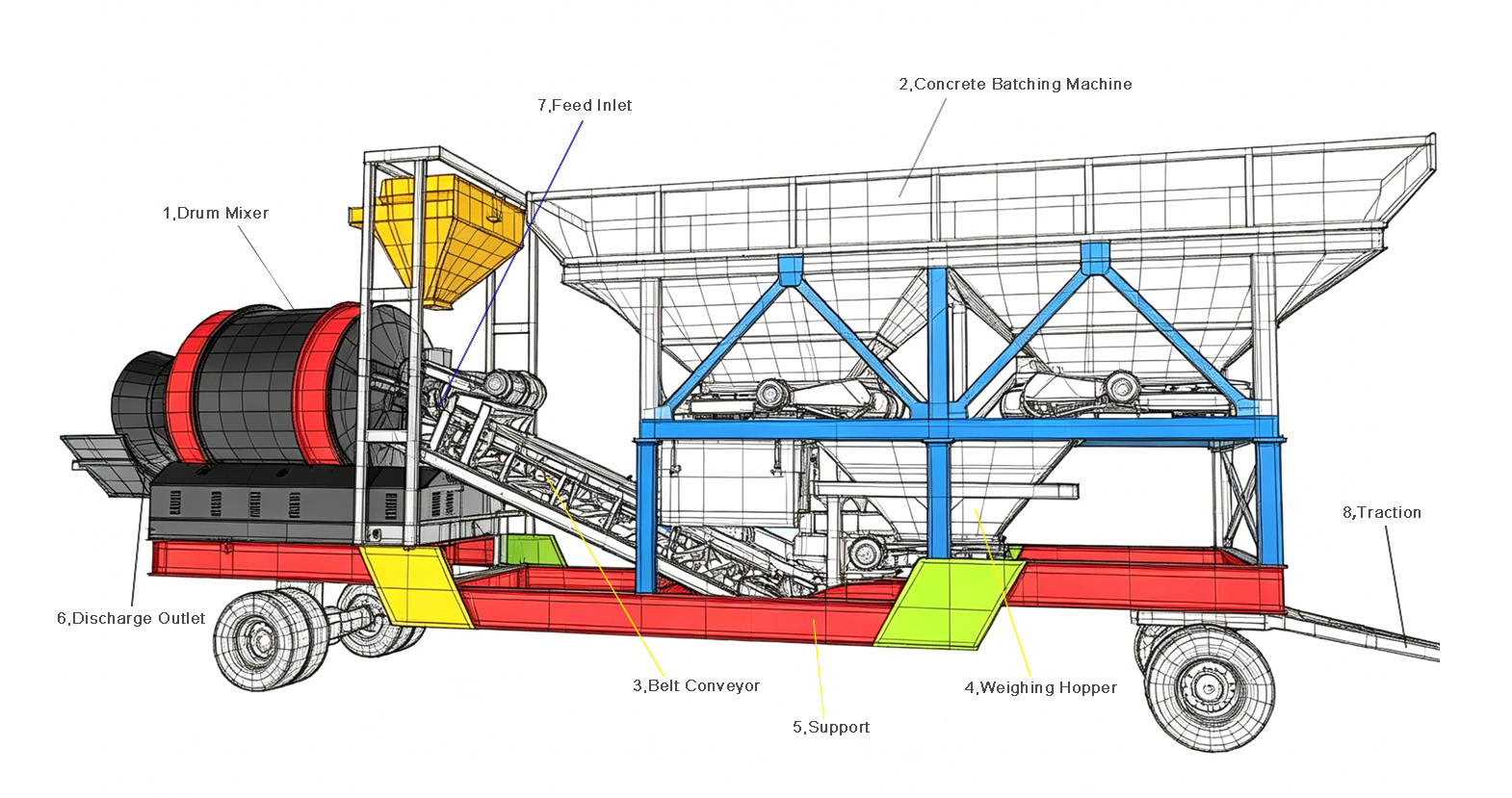

1, Mobile Drum Type Concrete Mixer Plants :

  1. 2. Concrete Batching Machine

3. Belt Conveyor

4. Weighing Hopper

5. Support

6. Discharge Outlet

7. Feed Inlet

8. Traction

Mobile drum concrete mixing plant

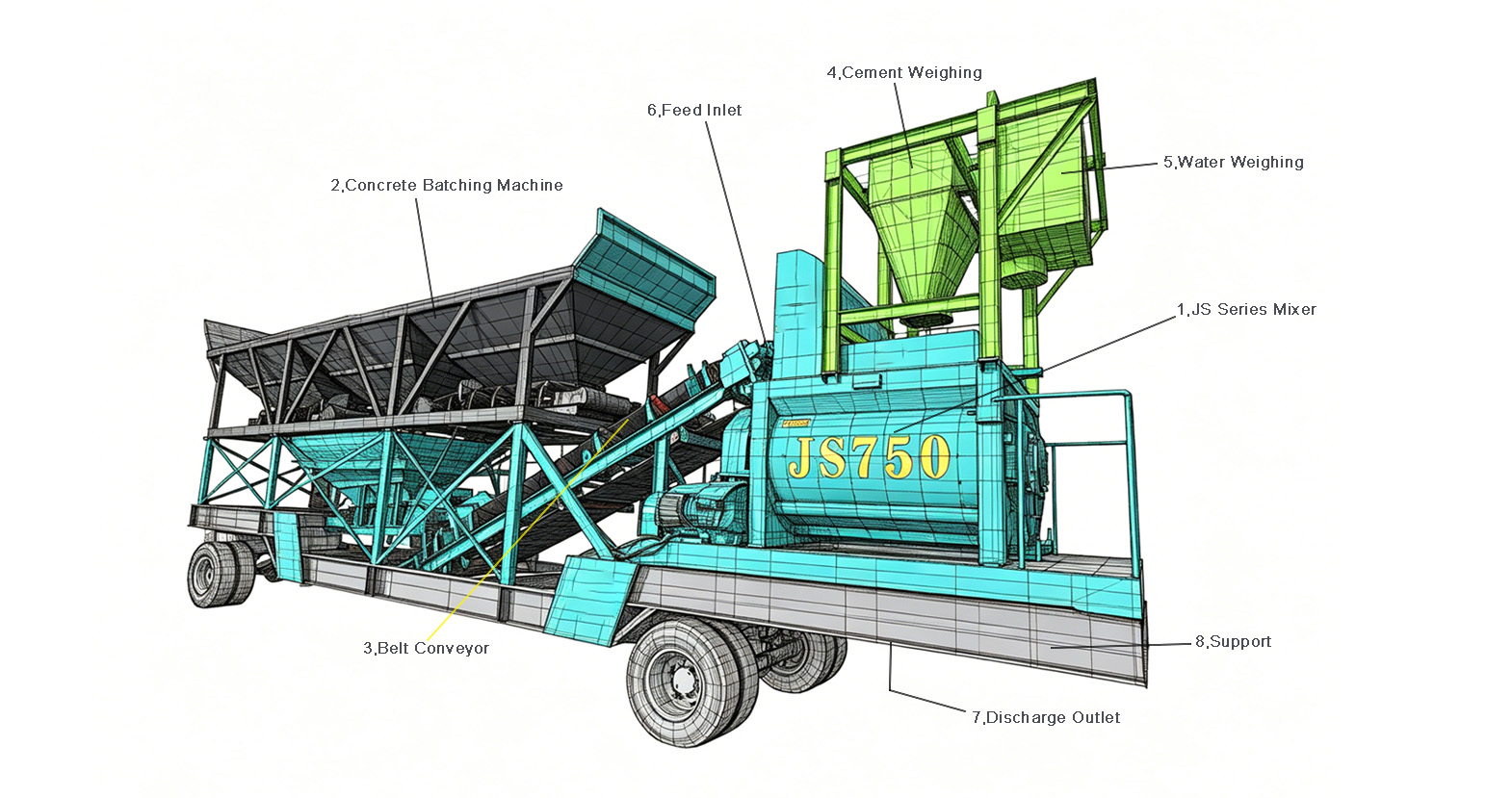

2. Mobile Forced Concrete Mixer Plant :

  1. 2. Concrete Batching Machine

3. Belt Conveyor

4. Cement Weighing

5. Water Weighing

6. Feed Inlet

7. Discharge Outlet

8. Support

Mobile forced concrete mixing plant

Mobile Concrete Batching Plants Selection Guide

1,By Output:

Small (10-30m³/h)

For rural construction and small temporary projects;

Medium (30-60m³/h)

For municipal maintenance and regional infrastructure;

Large (60-120m³/h)

For large-scale temporary construction and emergency projects.

2,By Working Conditions:

Mobile Drum Mixing Type

For low-cost, general concrete mixing scenarios; Mobile forced mixing type;

Mobile Forced Mixing Type

For high-strength concrete, precast parts and projects requiring high mixing quality. For frequent cross-region transfer, select lightweight chassis models;

3,Core Parameters:

Focus on output capacity, mixing type (drum/forced), mobility (chassis size, weight), mixing uniformity, power type and intelligent control level.
