1 cubic car mounted asphalt mixer, traction wheel mobile double tank asphalt mixer, specializing in the production of road machinery equipment
1 cubic double tank recycled asphalt mixer
Our 1 cubic dual-tank Mobile Recycled Asphalt Mixer is a specialized, movable RAP processing equipment, integrated with traction function for flexible relocation. As a high-performance Recycled asphalt mixer, it features a 1 cubic mixing capacity and dual-tank design , efficiently converting reclaimed asphalt pavement (RAP) into qualified hot-mix asphalt. The Recycled asphalt mixer with traction is compact, quick to install, intelligently controlled and fully customizable, ideal for small-to-medium road maintenance, rural road construction and temporary sites, balancing mobility, efficiency and environmental resource reuse.
Quantity:
Recommend Products
Function Description Of Recycled Asphalt Mixer
1 Cubic Dual-Tank Design for Efficient RAP Recycling
1 Cubic Dual-Tank Design for Efficient RAP Recycling
This Recycled asphalt mixer adopts a 1 cubic mixing capacity and dual-tank structure. The dual-tank design avoids material cross-contamination, improves mixing efficiency and ensures stable quality of regenerated asphalt. We can customize tank volume, material thickness and RAP addition ratio (up to 80–90%) to adapt to different RAP quality and project needs of the Mobile Recycled Asphalt Mixer.
This Recycled asphalt mixer adopts a 1 cubic mixing capacity and dual-tank structure. The dual-tank design avoids material cross-contamination, improves mixing efficiency and ensures stable quality of regenerated asphalt. We can customize tank volume, material thickness and RAP addition ratio (up to 80–90%) to adapt to different RAP quality and project needs of the Mobile Recycled Asphalt Mixer.
Traction & Mobile Design for Flexible Relocation
The Recycled asphalt mixer with traction is equipped with a heavy-duty traction hook and wear-resistant wheeled chassis, easily pulled by a tractor for relocation between sites without disassembly. The reinforced chassis ensures stable movement on rural, remote or uneven roads. We can customize traction mode, wheel type (solid/hollow) and chassis size to match different transportation scenarios.
Energy-Saving Heating & Environmental Protection

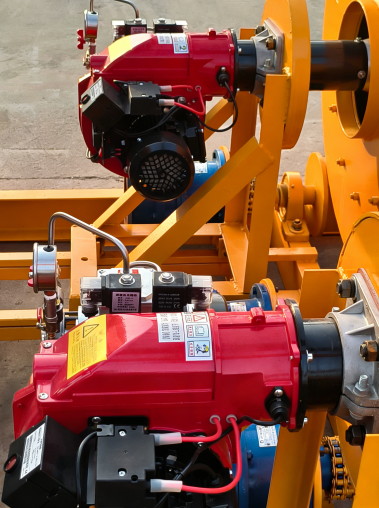

The Mobile Recycled Asphalt Mixer is equipped with a high-efficiency burner (compatible with diesel, heavy oil, natural gas), with a thick insulation layer on the mixing drum to reduce heat loss, and fuel consumption as low as 5.0–6.5kg/t. We can customize waste heat recovery and noise reduction accessories according to local regulations.
Intelligent Control & Easy Operation
Equipped with PLC intelligent control system, the Recycled asphalt mixer with traction supports manual, semi-automatic and fully automatic operation. It real-time monitors temperature, mixing speed, RAP addition ratio and dual-tank material level, with fault alarm and self-diagnosis functions to reduce labor errors. We can customize remote monitoring, data recording and multi-language interface for convenience.
Compact Structure & Quick Installation
As a 1 cubic small Mobile Recycled Asphalt Mixer, it adopts a compact modular design, reducing footprint and facilitating transportation. No complex foundation is required; it can be installed and put into use within 24–36 hours after arriving at the site. We can customize modular split and installation accessories to adapt to narrow temporary sites.
Fully Customizable Configuration
We provide comprehensive customization for the 1 cubic dual-tank Recycled asphalt mixer: mixing capacity (adjustable within 0.8–1.2 cubic), traction mode, fuel type, RAP addition rate, dual-tank volume, control system, dust removal equipment and safety accessories. All customizations are tailored to your project scale, mobility needs and budget.
Product Parameters Of Mobile Recycled Asphalt Mixer
| parameter name | Parameter Details |

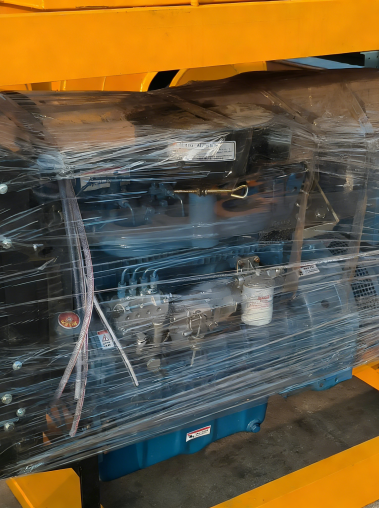

| Engine | shanghaiyufa |
| production power | 15-20 minutes per session |
| Frame size | 4200*2300*2000mm |
| Tank size | 500000 kcal |
| Power/Power | 30kW generator set |
| Product structure | Last in last out formula |
| Mixing temperature | Adjustable from 160-210 ℃ |
| Fuel tank capacity | 500L |
| Mode of transportation | Car mounted/Flat truck |
| Tank length | 2450 mm |
| Tank diameter | 1100 mm |

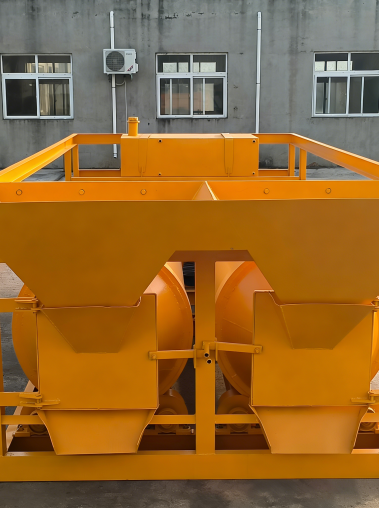

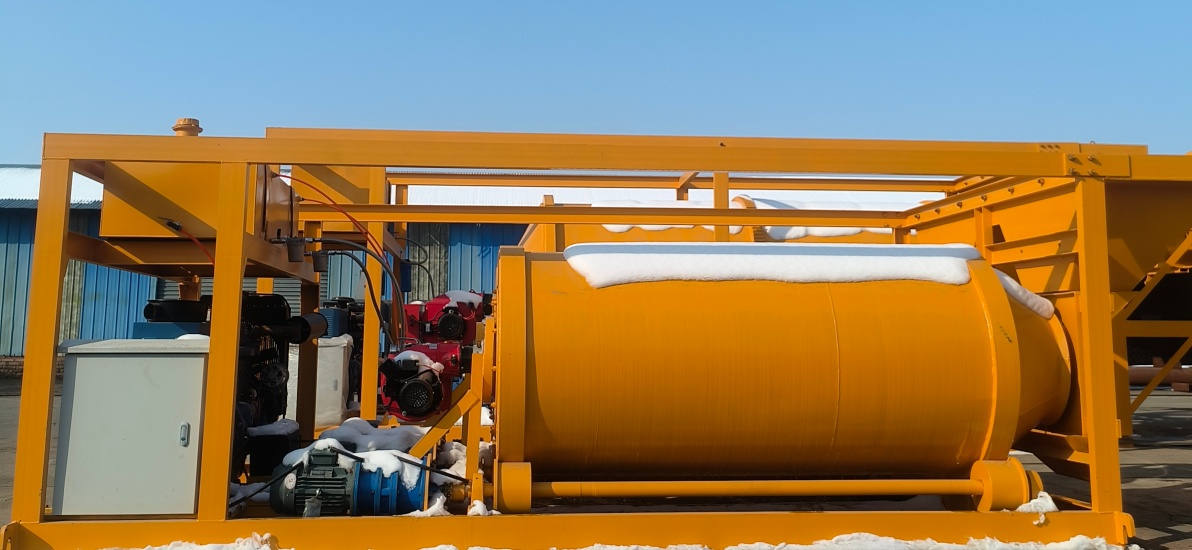

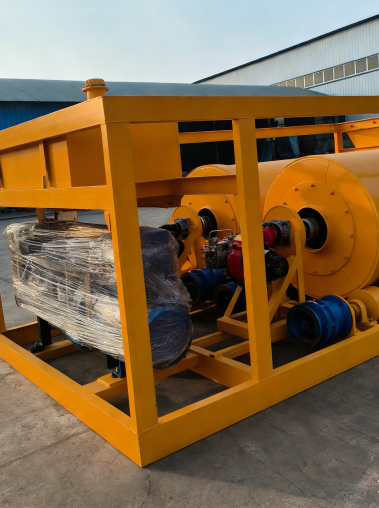

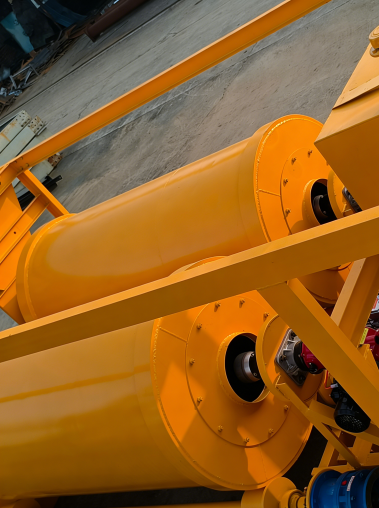

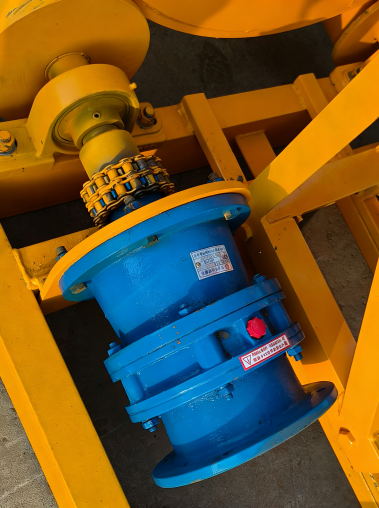

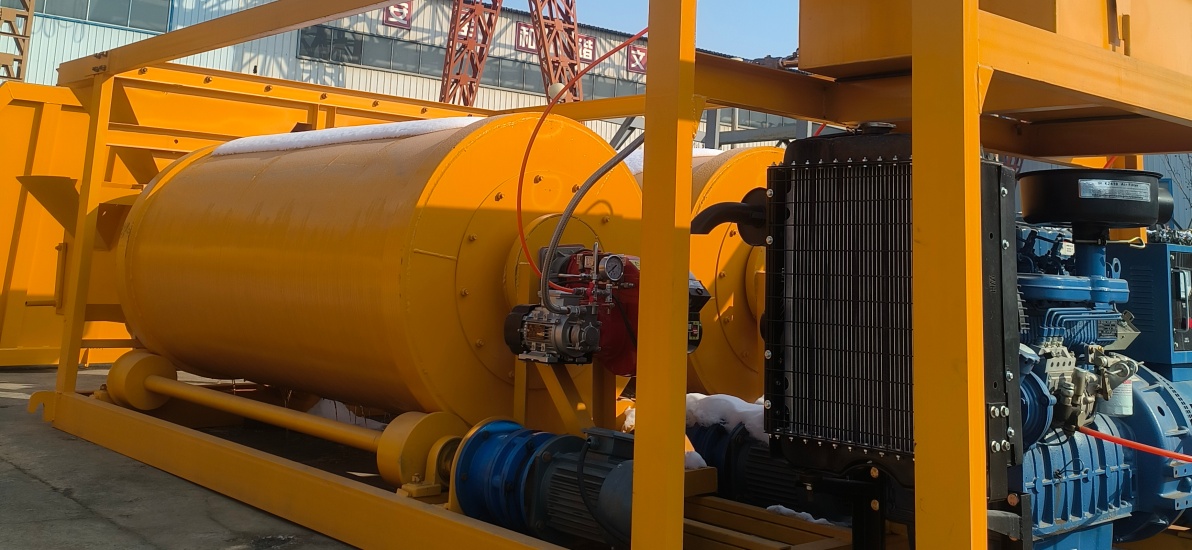

Product Image Of Recycled Asphalt Mixer With Traction
Application Scenarios Of 1 Cubic Asphalt Mixer
- Road Maintenance: The Recycled asphalt mixer with traction can be flexibly relocated between road sections, suitable for emergency repair, regular maintenance and RAP reuse, saving raw material costs.
- Rural & Remote Construction: 1 cubic small size, quick installation and easy traction, suitable for rural highways, township roads and remote sites with limited space and resources.
- Municipal Maintenance: Compact size, low noise and dust, suitable for urban road renovation, community road repair and square paving, without affecting traffic.
- Temporary Projects: The Mobile Recycled Asphalt Mixer can be quickly relocated and put into use, suitable for temporary projects such as airport aprons, port access roads and emergency repair.
- 5. Small-Scale RAP Reuse: Specialized in small-to-medium RAP processing projects, converting milled RAP into qualified asphalt mixture for resource recycling.
FAQ Of 1 Cubic Movable Asphalt Mixer
1. Q: What are the key parameters of the 1 cubic dual-tank Mobile Recycled Asphalt Mixer?
A: Mixing capacity 1 cubic, RAP addition rate 80–90%, fuel consumption ≤5.0–6.5kg/t, mixing temperature 160–210°C, total power 30kW. All parameters are customizable for the Recycled asphalt mixer.
2. Q: What is the advantage of the dual-tank design in this Recycled asphalt mixer with traction?
A: The dual-tank design allows for simultaneous or independent operation, ensuring precise proportioning and improving mixing efficiency.And avoid waste of resources. It is more suitable for small-scale RAP recycling projects requiring stable quality.
3. Q: What customization services do you provide for the 1 cubic Mobile Recycled Asphalt Mixer?
A: Customizable mixing capacity (0.8–1.2 cubic), traction mode, fuel type, RAP addition rate, dual-tank volume, control system, dust removal equipment and wheel type, matching your specific needs.
4. Q: Is this Recycled asphalt mixer with traction easy to operate and maintain?
A: Yes. Intelligent control system for simple operation (1–2 operators); easy-to-replace wearing parts and fault self-diagnosis simplify maintenance. We provide maintenance kits and on-site guidance.
5. Q: What is the price range of the 1 cubic dual-tank Recycled asphalt mixer?
A: Factory direct price is $8,000–$12,000/set, depending on configuration and customization requirements, with competitive prices as a direct manufacturer.
