Electric forced flat mouth mixer production plant, a small flat mouth cement concrete mixer with simple operation.
Electric flat mouth mixer
Our concrete pan mixer is a high-performance concrete pan mixer machine, specialized as an electric concrete pan mixer integrating advanced pan mixing technology and efficient electric drive. It is mainly used for producing ordinary concrete, mortar and small-batch stabilized soil for small-medium construction scenarios. With customizable single batch capacity (50-500L), it adopts a compact pan structure and high-precision mixing blades, ensuring uniform mixing and stable quality. As an electric concrete pan mixer, it features low energy consumption and easy operation, with a modular design for convenient movement and maintenance. We provide flexible customization services, including capacity, motor power, control mode and mixing speed, making it a reliable choice for various small-medium mixing scenarios.
Quantity:
Recommend Products
JZC 350 drum type climbing bucket concrete mixer for sale, gear mixer, cement concrete mixer manufacturerJZC 350 diesel
JZC 500 diesel concrete mixer for sale, version drum type climbing bucket ,climbing hopper cement concrete mixer manufacturerJZC 500 Diesel Edition
JZC 500 manual version drum type climbing hopper concrete mixer for sale, climbing hopper cement concrete mixer manufacturerJZC 500 Manual Version
JZC 500 hydraulic version drum type climbing hopper concrete mixer for sale, climbing hopper cement concrete mixer manufacturerJZC 500 Hydraulic Edition
Function Description Of Pan Concrete Mixer
Compact Pan Structure & Uniform Mixing:
This concrete pan mixer adopts a high-quality cast iron pan body with a smooth inner wall, matching high-hardness mixing blades and scrapers, ensuring full contact between materials and blades. The pan-type mixing design makes materials stir in a closed space, mixing uniformity up to 99.6%, effectively avoiding material residue and segregation. We can customize pan size, blade material (alloy steel/ceramic) and mixing speed (15-25r/min) according to your material characteristics.
Efficient Electric Drive & Energy Saving:
As a professional electric concrete pan mixer, it is equipped with a high-quality copper-core electric motor (customizable power 1.5-7.5KW), providing steady power, low energy consumption and low noise (≤70dB). The motor is equipped with overload and overheating protection, supporting continuous operation for 8-12 hours, suitable for small-batch continuous mixing needs. We can customize motor voltage (220V/380V) to adapt to different regional power supply conditions.
Easy Operation & Convenient Maintenance:
This concrete pan mixer machine adopts a simple and intuitive control panel, with one-key start and stop, and 1 person can easily operate it. The detachable pan body, blades and scrapers facilitate cleaning and maintenance, reducing daily workload. We can customize the control mode (manual/semi-automatic) and add mobile wheels for easy on-site movement, further improving usability.
Flexible Customization & Multi-Scene Adaptation:
We offer comprehensive customization for this concrete pan mixer, including single batch capacity (50-500L), motor power, mixing speed, pan material and control system. It can adapt to -20℃ to 55℃ temperature range, and we can customize low-temperature startup accessories and anti-rust coating, fitting small construction sites, rural construction, small precast factories and municipal maintenance scenarios. The compact design saves on-site space, suitable for narrow construction environments.
Product Parameters Of Pan Mixer Concrete
| Model | Capacity | Power | Transmission | Flat Size | Overall Dimension | Weight | Factory price (USD) |
| JW400 Flat mouth mixer | 0.4㎥ | 5.5kw(Motor Power) | Flat box | 1.1*0.4m | 1.1*1.1*1.1m | 230kg | 405 |
| JW500 Flat mouth mixer | 0.5㎥ | 7.5kw(Motor Power) | Whole Bridge/Half Bridge | 1.3*0.5m | 1.3*1.3*1.3m | 480kg | 650 (Half Bridge) / 880 (Whole Bridge) |
| JW500 Whole bridge Mixer | 0.5㎥ | 7.5kw(Diesel Engine) | Whole Bridge | 1.3*0.5m | 1.3*1.3*1.3m | 480kg | 1250 |
| JW500 Half bridge Mixer | 0.5㎥ | 7.5kw(Diesel Engine) | Half Bridge | 1.3*0.5m | 1.3*1.3*1.3m | 480kg | 1100 |
| JW750 Whole bridge Mixer | 0.75㎥ | 11kw(Motor Power) | Whole Bridge | 1.5*0.5m | 1.5*1.5*1.3m | 550kg | 1050 |
| JW750 Half bridge Mixer | 0.75㎥ | 11kw(Motor Power) | Half Bridge | 1.5*0.5m | 1.5*1.5*1.3m | 550kg | 780 |
| JW1000 Whole bridge Mixer | 1㎥ | 15kw(Motor Power) | Whole Bridge | 1.8*0.5m | 1.8*1.8*1.3m | 680kg | 1280 |
| JW1000 Half bridge Mixer | 1㎥ | 15kw(Motor Power) | Half Bridge | 1.8*0.5m | 1.8*1.8*1.3m | 680kg | 975 |
| JW1500 Whole bridge Mixer | 1.5㎥ | 18.5kw(Motor Power) | Whole Bridge | 2*0.5m | 2*2*1.3m | 750kg | / |
| JW1500 Secondary variable speed mixer | 1.5㎥ | 11kw(Motor Power) | Secondary variable speed | 2*0.5m | 2*2*1.3m | 750kg | / |
| JW2000 Whole bridge Mixer | 2㎥ | 18.5kw(Motor Power) | Whole Bridge | 1.8*0.8m | 1.8*1.8*1.6m | 800kg | / |
| JW2000 Secondary variable speed mixer | 2㎥ | 11kw(Motor Power) | Secondary variable speed | 1.8*0.8m | 1.8*1.8*1.6m | 800kg | / |

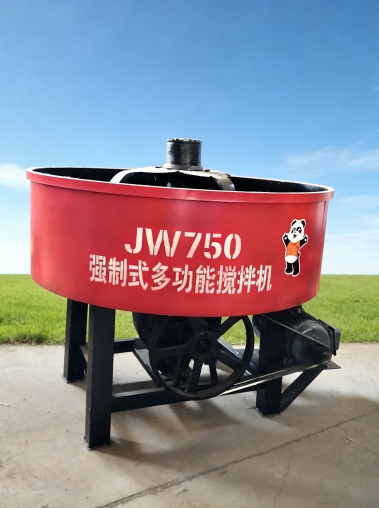

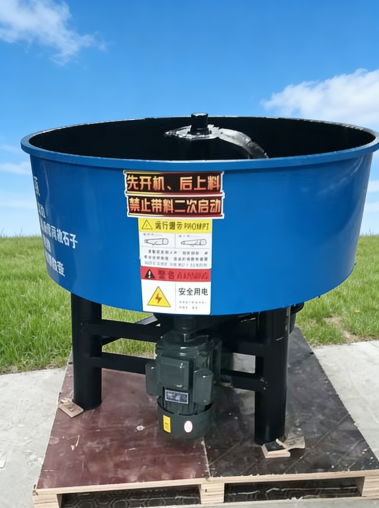

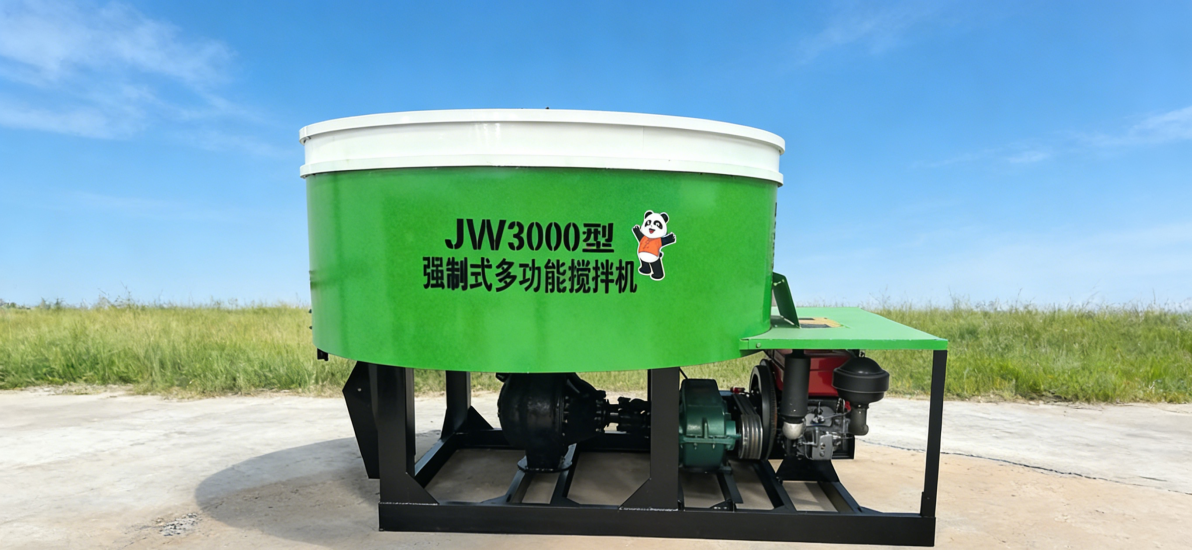

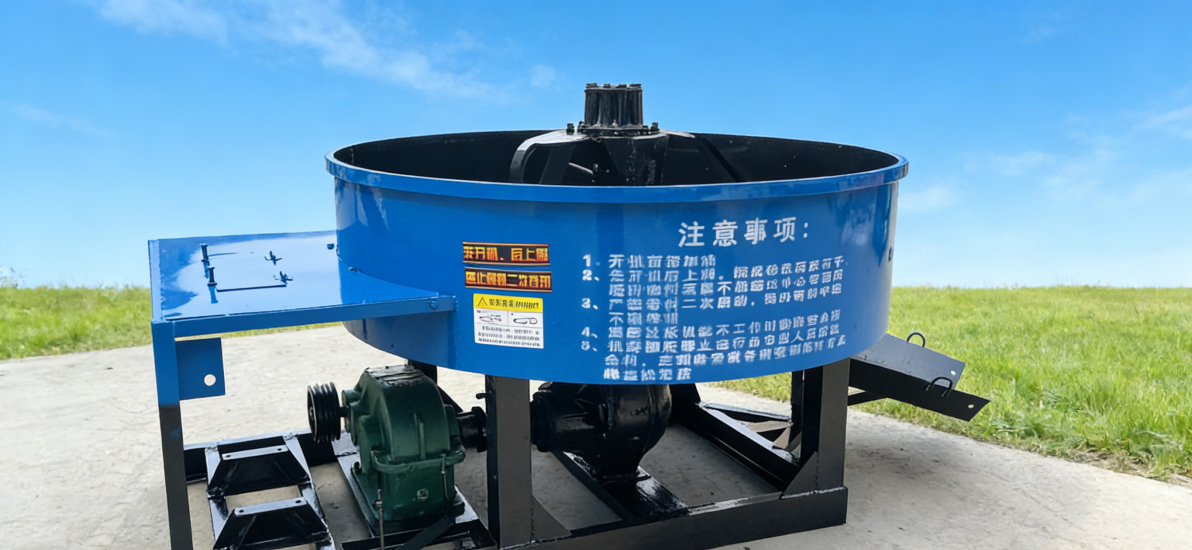

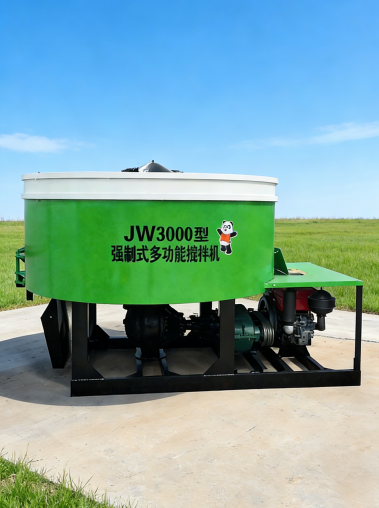

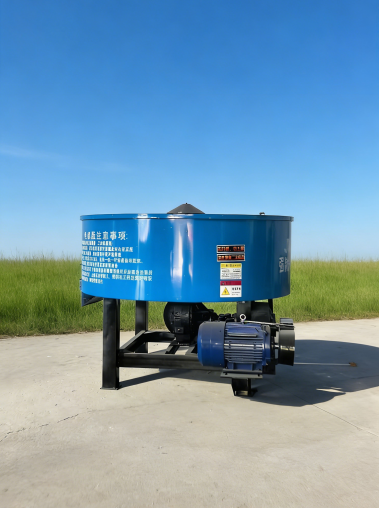

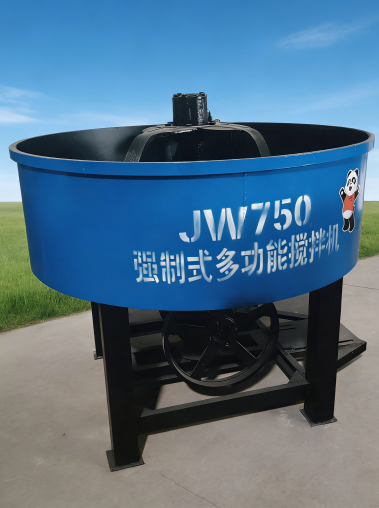

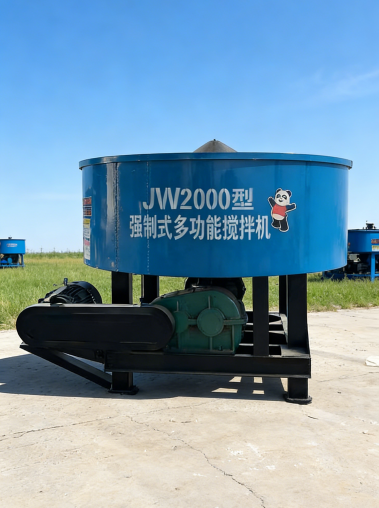

Product Image Of Pan Type Concrete Mixer
Application Scenarios Of Customizable Concrete Pan Mixer
Our concrete pan mixer, as a high-quality concrete pan mixer machine and electric concrete pan mixer, is widely used in small-medium mixing scenarios, with customizable configurations for different needs:
- Small construction sites: Residential decoration, small residential buildings, garden construction, requiring small and flexible concrete pan mixer, customizable small capacity to meet small-batch mixing needs.
- Rural construction: Rural house building, village road maintenance, small water conservancy projects, suitable for electric concrete pan mixer with low energy consumption, customizable mobile configuration for easy transfer.
- Small precast factories: Production of small precast components (such as concrete blocks, precast slabs), requiring uniform mixing, customizable mixing speed and blade structure to meet precast standards.
- Municipal maintenance & indoor projects: Road maintenance, community renovation, indoor decoration mortar mixing, suitable for compact concrete pan mixer machine, small size to adapt to narrow spaces.
FAQ Of Customizable Concrete Pan Mixer
1. Q: What are the key parameters of your concrete pan mixer?
A: Single batch capacity is customizable (50-500L), mixing uniformity ≥99.6%, motor power 1.5-7.5KW (customizable), mixing speed 15-25r/min, voltage 220V/380V (customizable). We can customize parameters to optimize this concrete pan mixer machine’s performance.
2. Q: What advantages does your electric concrete pan mixer have compared with other mixers?
A: It has a compact pan structure, small size, easy operation and maintenance; electric drive is energy-saving and low-noise, suitable for small-batch mixing and narrow construction sites, with flexible customization options.
3. Q: What customization services do you provide for this concrete pan mixer machine?
A: Customizable single batch capacity, motor power, mixing speed, pan/blade material, control mode, mobile wheels and voltage, fully matching your mixing needs and budget.
4. Q: Is the concrete pan mixer easy to clean and maintain?
A: Yes. It has a detachable pan body, blades and scrapers, which are easy to clean; the structure is simple, daily maintenance only needs regular lubrication and inspection. We can customize maintenance kits for convenience.
5. Q: What is the price range of your electric concrete pan mixer for sale?
A: Price ranges from 400-5,000 US dollars (factory direct), depending on your customization requirements for this concrete pan mixer’s capacity and configuration.
