Mobile asphalt mixing plant complete equipment for sale Factory direct sale
MDHB mobile drum asphalt mix plant
WDHB Series mobile asphalt drum mix plant is a professional wheeled-type asphalt mobile drum mixing plants, designed for flexible and efficient hot-mix asphalt production. As a reliable china mobile asphalt drum mix plant supplier, we integrate a movable wheeled chassis with an integrated drum mixing system, covering 20–100t/h capacity. It features quick relocation, compact structure, easy installation and full customization, ideal for temporary construction sites, road maintenance and remote projects where mobility is required.
Quantity:
Recommend Products
Asphalt mixing plant manufacturer Complete equipment scheme designLB2000 asphalt mixing plant
Asphalt mixing plant equipment manufacturing factory Complete solution designLB1500 asphalt batching plant
Drum asphalt mixing plant complete set of equipment for sale On-site guidanceDHB asphalt drum mix plant
Function Description Of Mobile Asphalt Mixing Plant
Wheeled Mobile Design & Quick Relocation
The WDHB mobile asphalt drum mix plant is equipped with heavy-duty wear-resistant wheels and a traction device, enabling flexible relocation between construction sites. The wheeled chassis is reinforced to bear the whole machine weight, ensuring stable movement on various road conditions. We can customize wheel type, chassis size and traction mode to adapt to different transportation needs of asphalt mobile drum mixing plants.

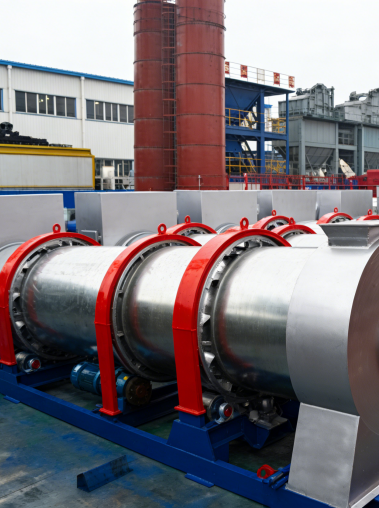

Integrated Drum Mixing System
This china mobile asphalt drum mix plant adopts an integrated rotary drum, completing aggregate drying, heating and asphalt mixing in one continuous process. The internal lifting plate design ensures even heat distribution and uniform mixing, with mixing uniformity up to 99.5%. We can customize drum size, rotation speed and lining material to match 20–100t/h production capacity.
Energy-Saving & Low Operating Cost
The mobile asphalt drum mix plant is equipped with a high-efficiency burner (compatible with diesel, heavy oil, natural gas), with a thick insulation layer on the drum to reduce heat loss. Fuel consumption is as low as 5.2–6.8kg/t, significantly reducing operating costs. We can customize burner power and fuel type according to local fuel supply and environmental standards.

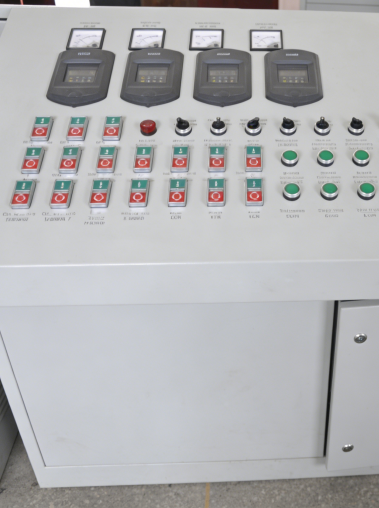

Intelligent Control & Easy Operation
Equipped with a PLC intelligent control system, this asphalt mobile drum mixing plants supports manual, semi-automatic and fully automatic operation. It realizes real-time monitoring of temperature, speed and material ratio, with fault alarm and self-diagnosis functions. The simple interface allows 1–2 operators to master it quickly. We can customize PLC system as needed.
Compact & Easy Installation
As a professional china mobile asphalt drum mix plant, it adopts a compact modular design, reducing footprint and facilitating transportation. No complex foundation is required; it can be installed and put into use within 2-5 days after arriving at the site. We can customize modular split and installation accessories to meet different on-site conditions.
Fully Customizable Configuration
We provide comprehensive customization for WDHB mobile asphalt drum mix plant: production capacity (20–100t/h), wheel type, chassis design, fuel type, dust removal system (cyclone + bag filter), asphalt tank volume, control system and safety accessories. All customizations are tailored to your project scale, mobility needs and budget.
Product Parameters Of Asphalt Mixing Plant With Wheels
| model | Production capacity (t/h) | Total power (kw) | Fuel consumption (kg/t) | |
| coal burning | fuel | |||
| MDHB-20 | 20 | 40 | 10 | 5.5-7 |
| MDHB-40 | 40 | 75 | 10-13 | 5.5-7 |
| MDHB-60 | 60 | 128 | 10-13 | 5.5-7 |
| MDHB-80 | 80 | 165 | 10-13 | 5.5-7 |
| MDHB-100 | 100 | 200 | 10-13 | 5.5-7 |

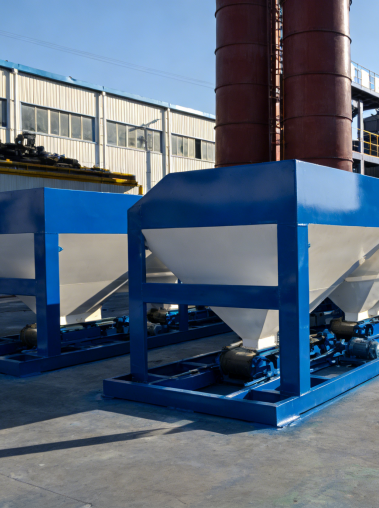

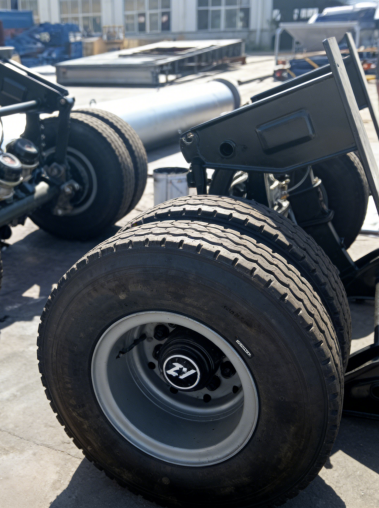

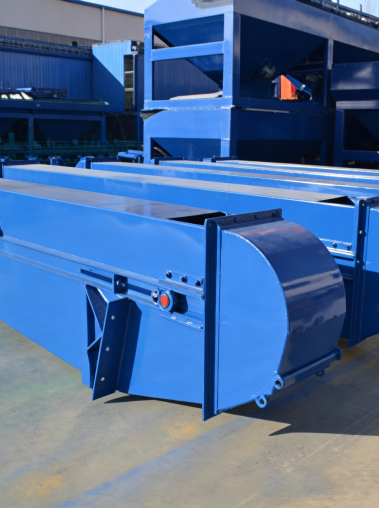

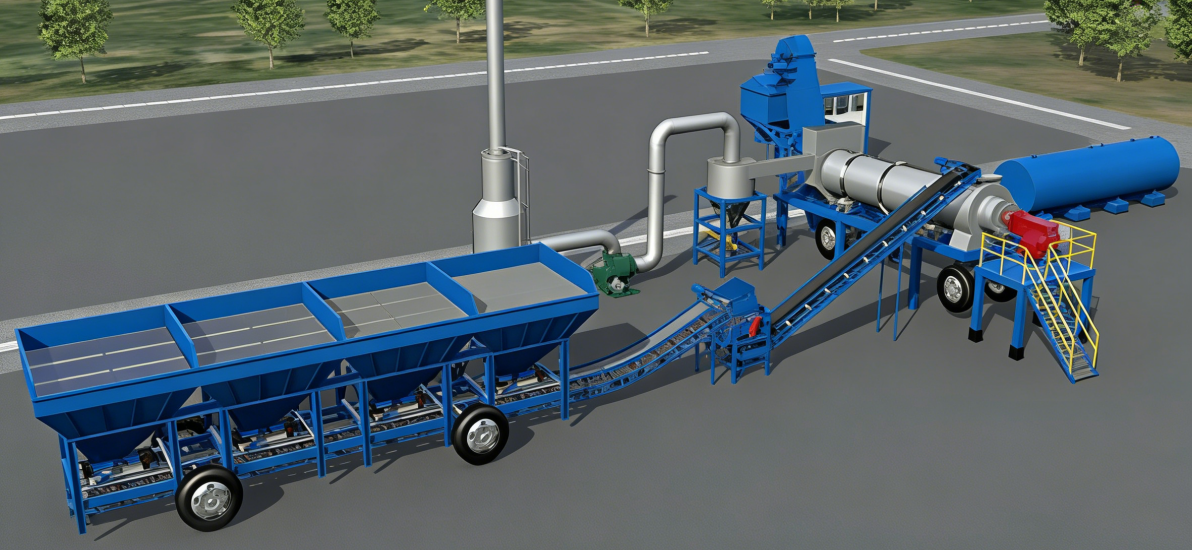

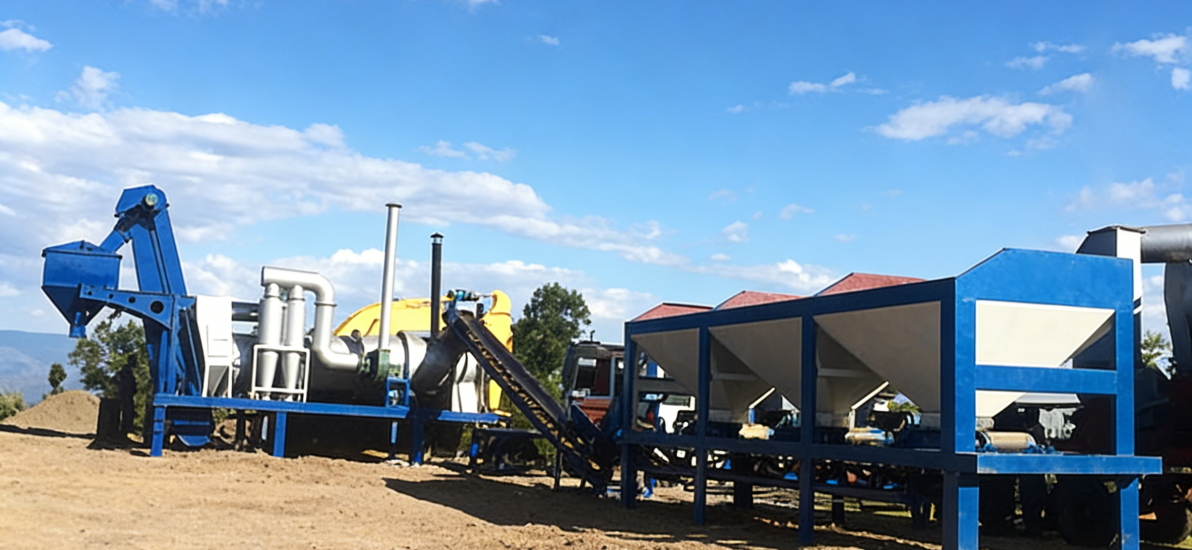

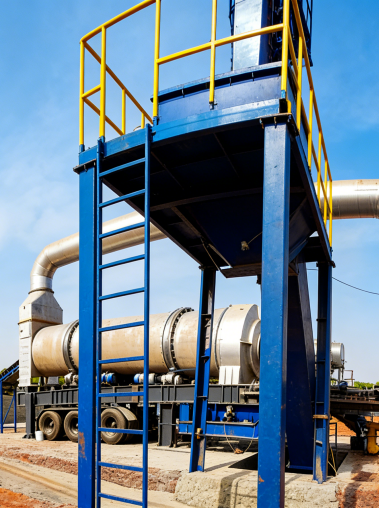

Product Image Of Asphalt Mixing Plant With Wheels
Application Scenarios Of Mobile Drum Asphalt Mixing Plant
- Highway & Road Maintenance: Flexible relocation between road sections, suitable for emergency repair and regular maintenance, saving transportation time of asphalt mixture.
- Rural & Remote Construction: No complex foundation, quick installation, suitable for rural highways and township road construction where mobility is required.
- Temporary Construction Sites: Ideal for temporary projects such as airport aprons, port access roads and parking lots, with flexible relocation after project completion.
- Municipal & Urban Maintenance: Compact size, low noise and dust, suitable for urban road renovation and community road construction without affecting traffic.
- Global Export Projects: Customizable voltage, wheel standards and certifications (CE/ISO), suitable for international markets as a high-quality china mobile asphalt drum mix plant.
FAQ Of Mobile Drum Asphalt Mixing Plant
1. Q: What are the key parameters of WDHB mobile asphalt drum mix plant?
A: Capacity 20–100t/h, fuel consumption ≤5.2–6.8kg/t, mixing temperature 130–160°C, total power 40–220kW. All parameters are customizable by our china mobile asphalt drum mix plant team.
2. Q: How is this asphalt mobile drum mixing plants different from stationary models?
A: It has a wheeled mobile chassis for quick relocation, no complex foundation, and faster installation; stationary models are fixed in one site. This mobile type is more suitable for temporary and multi-site projects.
3. Q: What customization services do you provide for china mobile asphalt drum mix plant?
A: Customizable capacity, wheel type, chassis design, fuel type, dust removal system, asphalt tank volume, control system and safety accessories, fully matching your mobility and production needs.
4. Q: Is WDHB mobile asphalt drum mix plant easy to relocate and maintain?
A: Yes. It easy be relocated by traction ; installation takes 2-5 days. The structure is simple, and easy-to-replace wearing parts, reducing maintenance difficulty. We can supply consumable parts at cost price on a long-term basis.
5. Q: What is the price range of this china mobile asphalt drum mix plant?
A: Factory direct price is $45,000–$240,000/set, depending on capacity, configuration and customization requirements, with competitive prices as a direct supplier.
6. Q: Does this mobile asphalt drum mix plant meet environmental standards?
A: Yes. It easy be relocated by traction ; installation takes 2-5 days. The structure is simple, and easy-to-replace wearing parts, reducing maintenance difficulty. We can supply consumable parts at cost price on a long-term basis.
