HZS35 small concrete batch plant for sale, construction machinery manufacturers, cement mixing plants, welcome to visit the factory for inspection
HZS 35 concrete mixing plant
Zhenzhong HZS35 fixed concrete batching plant is a compact economical mixing unit with stable 35m³/h hourly output, designed for medium-small construction demands. Adopting reliable twin-shaft mixing host and automatic batching control, it delivers even concrete blending and consistent material proportion. Featuring small footprint, easy installation, low running cost and simple daily maintenance, this plant fits rural infrastructure, municipal auxiliary works and small precast workshops perfectly. We provide factory direct pricing, standard configuration and optional environmental upgrades, plus full overseas technical guidance and long-term after-sales support.
Quantity:
Recommend Products
HZS25 concrete mixing plant, construction machinery equipment production factory, cement mixing plant equipmentHZS 25 concrete mixing plant
HZS50 concrete mixing plant equipment, construction machinery manufacturer direct sales, one-on-one customized solutionsHZS 50 concrete mixing plant
HZS60 concrete mixing plant equipment production factory, direct sales from engineering machinery manufacturers, on-site guidance for installation availableHZS 60 concrete mixing plant
HZS75 concrete mixing plant engineering machinery equipment manufacturer, available on site to guide installation and develop plansHZS 75 concrete mixing plant
Product Function Description Of Hzs35 Small Concrete Batch Plants
- The HZS35 fixed concrete batching plant is an economical and efficient mixing unit with a steady hourly output of 35m³/h, specially designed for medium-small construction projects requiring higher efficiency.
- It adopts a JS750 twin-shaft forced mixer as the core component, which has stronger mixing capacity, faster stirring speed and more uniform mixing effect, and can efficiently stir dry-hard, plastic and other types of concrete, meeting the quality requirements of different construction scenarios.
- Equipped with a PLD1200 three-bin automatic batching machine, it realizes precise metering of all materials, with a metering accuracy of ±1% for powder and water, and ±2% for aggregates, ensuring the stability of concrete ratio and quality.
- The equipment adopts an integrated electrical control system, with clear operation interface, simple operation and easy mastery, and supports independent operation and linkage with other construction equipment.
- Made of high-strength wear-resistant materials, it has stable operation, long service life, compact layout, small floor space, easy installation and transportation, and low energy consumption, which can effectively reduce the operation cost of users.
- It adopts quadruple sealing technology to prevent coarse sand from entering the shaft head, and optional automatic oil filling, cement silos,screw conveyor and other necessary accessories.
Product Parameters Of Hzs35 Concrete Batching Plant
| model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 | HZS240 | |
| Theoretical productivity(M3/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 | 240 | |
| Type of concrete mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 | JS3000 | JS4000 | |
| Mixing motor power (KW) | 18.5 | 30 | 2x18.5 | 2x18.5 | 2*30 | 2x30 | 2x37 | 2x55 | 2x75 | |
| Cycle period | 60S | 60s | 60s | 60s | 60s | 60s | 60s | 60s | 60s | |
| Volume of mixer(L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 3000 | 4000 | |
| Total power of the plant(KW) | 60 | 80 | 100 | 150 | 164 | 164 | 210 | 268 | 363 | |
| Volume of concrete mixer (M3) | 0.5 | 0.75 | 1 | 1 | 1.5 | 1.5 | 2 | 3 | 4 | |
| Type of batching machine | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 | PLD4800 | PLD6400 | |
| Batching accuracy | Aggregate | ≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% |
| Water | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | |
| Cement | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | |
| Additive | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | |
| Discharging height | 3.8m | 3.8m | 4.2m | 4.2m | 4.2m | 4.2m | 4.2m | 4.2m | 4.2m | |

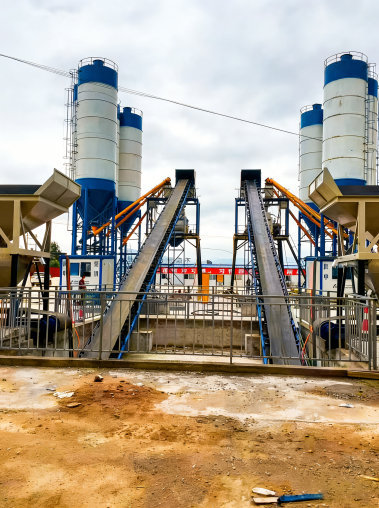

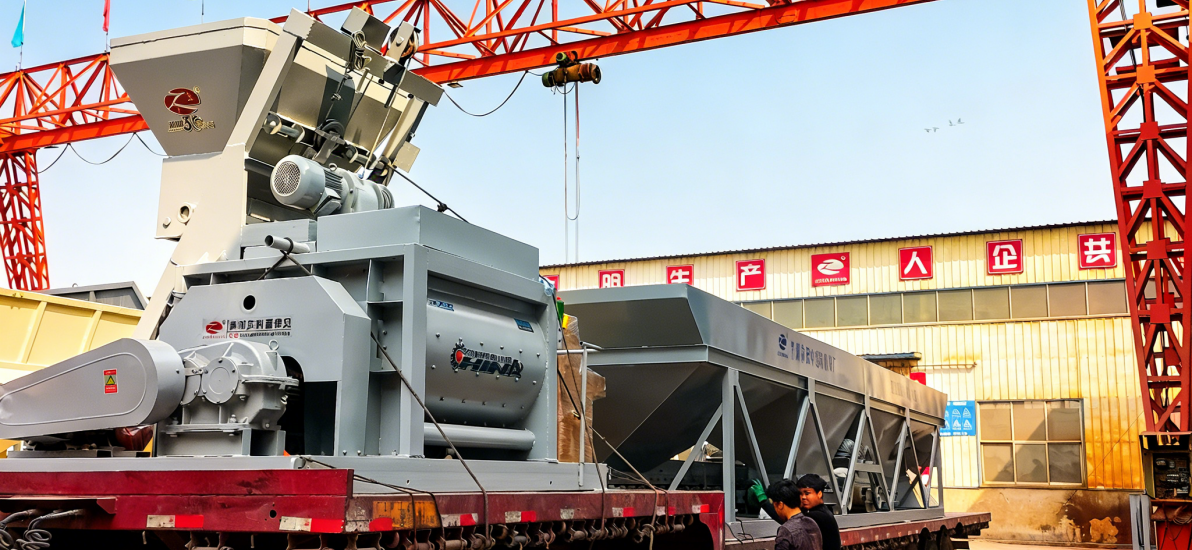

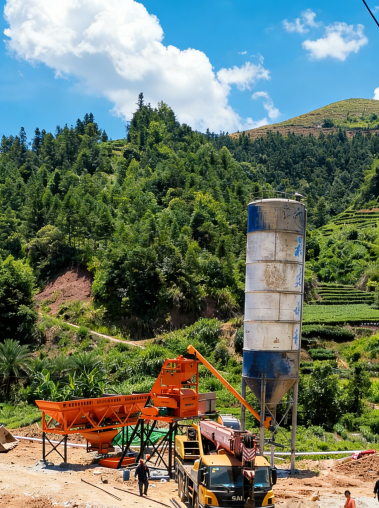

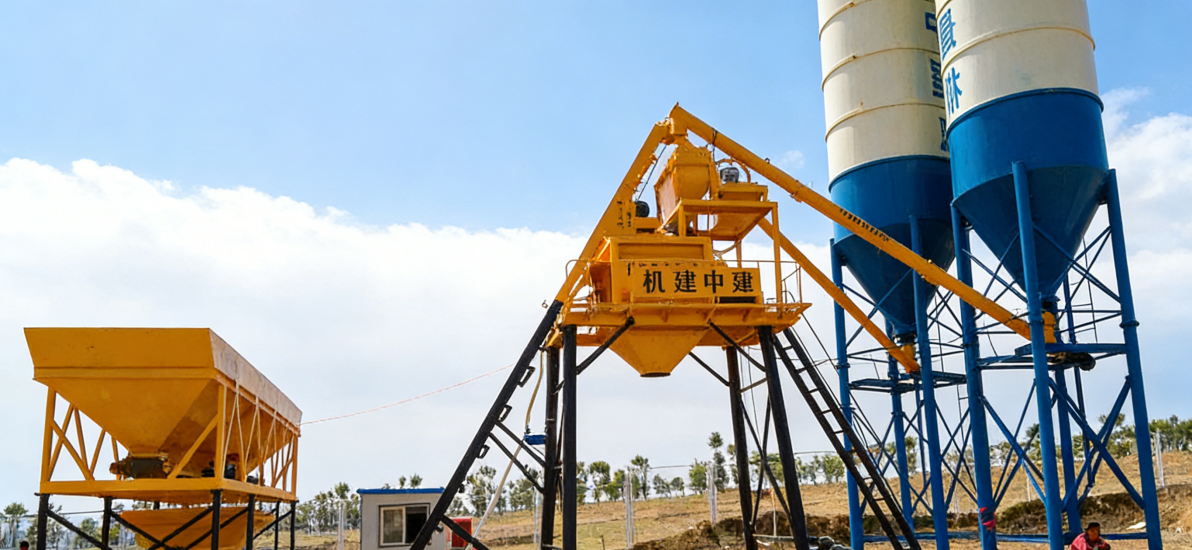

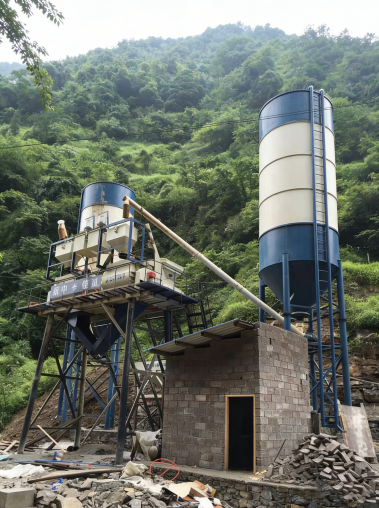

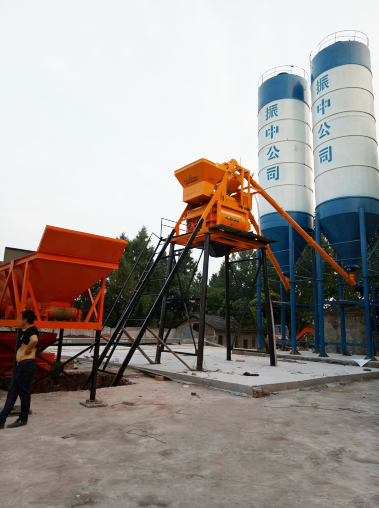

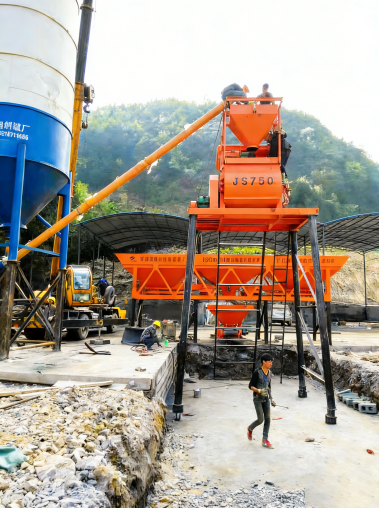

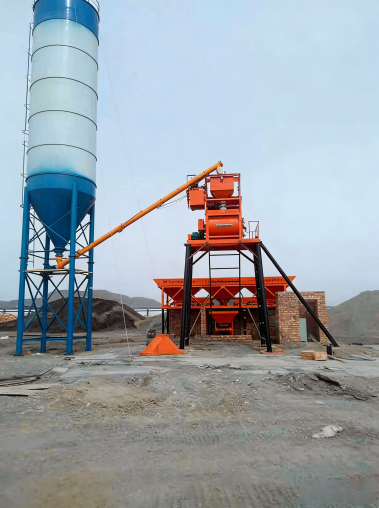

Product Image Of Hzs35 Concrete Mixing Plant
Application Scenarios Of Hzs35 Concrete Mixing Plant
The HZS35 fixed concrete batching plant has high efficiency and strong adaptability, and is mainly suitable for medium-small construction projects with higher efficiency requirements, including but not limited to:
- Rural and urban infrastructure projects: Suitable for rural road hardening, urban auxiliary road construction, residential district supporting projects, etc., with stable output and high efficiency, which can speed up the project progress.
- Municipal engineering projects: Applicable to urban sidewalk renovation, small drainage projects, green belt construction, municipal pipeline auxiliary projects, etc., with compact layout, which can adapt to the narrow construction site in urban areas.
- Highway and bridge auxiliary projects: Used for the construction of highway toll stations, small bridge decks, roadbed backfilling and other projects, with precise batching and stable performance, ensuring the construction quality of key parts.
- Medium-small precast component factories: Suitable for precast factories producing concrete pipes, manhole covers, precast beams and other products, with efficient mixing capacity and stable output, which can improve the production efficiency of precast components.
- Other medium-small construction scenarios: Such as small industrial plant construction, school expansion projects, hospital renovation, scenic spot supporting facilities construction, docks and airport auxiliary projects, etc., which can flexibly meet the diversified concrete mixing needs of different projects.
FAQ Of Concrete Mixing Plant
1. Q: What is the theoretical and actual output of the HZS35 fixed concrete batching plant?
A: The theoretical output of the HZS35 is 35m³/h, and the actual output can reach 30-32m³/h under normal operation, which is suitable for medium-small construction projects requiring higher efficiency than smaller models. Each batch discharge capacity is 0.75 cubic meters, and each cycle takes about 60 seconds.
2. Q: What is the core configuration of the HZS35 concrete batching plant?
A: The core configuration includes JS750 twin-shaft forced mixer (mixing power 30KW), PLD1200 automatic batching machine( two-four bins), integrated electrical control system, weighting system, pneumatic system. It can also be equipped with 50t or 100t cement silo and LSY219 screw conveyor as optional parts, and customized according to user's construction needs.
3. Q: What is the difference between HZS35 and smaller models like HZS25?
A: The main differences are output and configuration: HZS35 has a theoretical output of 35m³/h (higher than HZS25's 25m³/h), adopts JS750 mixer (instead of JS500 for HZS25) with stronger mixing capacity, and is equipped with a more advanced integrated control system. It also has larger batching machine capacity and higher metering accuracy for materials, which is more suitable for projects with higher efficiency requirements.
4. Q: Is the HZS35 easy to install and maintain?
A: Yes. The equipment adopts a modular structural design, which is simple to assemble and disassemble, and convenient for on-site operation and transportation; it also adopts electric oil pump technology to reduce repair and maintenance costs, and the wearing parts are easy to replace. Daily maintenance only needs regular cleaning and lubrication, which does not require professional and complex operation skills.
5. Q: Can the HZS35 be customized according to actual needs?
A: Yes. We provide customized services for the HZS35, which can adjust the batching machine specifications (2-4 bins optional), control system (full-automatic, semi-automatic or manual), dust removal equipment and discharge height according to the user's construction scenario, concrete type and output requirements, so as to better match the project needs.
6. Q: What after-sales services do we provide for the HZS35?
A: As a direct factory, we provide 24/7 global after-sales support, including professional on-site installation and commissioning, operator training, supply of wearing parts, and timely fault maintenance guidance. We also have overseas agents in many countries to ensure quick maintenance and low cost, ensuring that the equipment can operate stably for a long time.
7. Q: What is the delivery time of the HZS35 concrete batching plant?
A: Since the HZS35 belongs to small and medium-sized concrete batching plant (output below 60m³/h), it can be delivered within 7 days after confirming the order and payment, which can effectively shorten the project preparation cycle.
